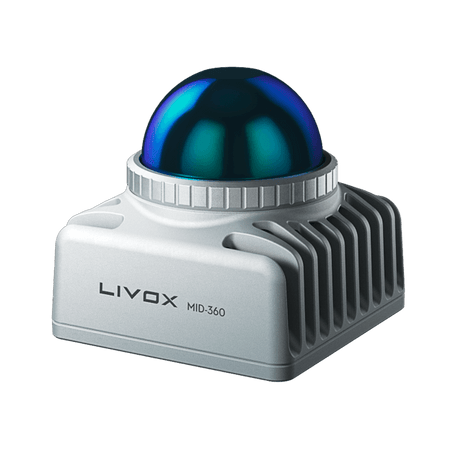

MID-360

Livox

The cost-efficient LiDAR solution that provides mobile robots with a complete 360° surround view for precise navigation and obstacle avoidance.

In stock
On backorder

6 Woche(n)

Livox

ROS 2

Livox Introduces the Mid-360: Advanced Hybrid Solid-State 3D LiDAR for Mobile Robotics

With the new Mid-360, Livox opens a new chapter in 360° stereo sensing. The next-generation hybrid solid-state 3D LiDAR was specifically developed for use in mobile robots. Thanks to its compact design, the sensor can be easily integrated and is ideal for a wide range of applications — both indoors and outdoors. The Mid-360 meets key requirements such as precise navigation, reliable obstacle avoidance, and enhanced environmental perception.

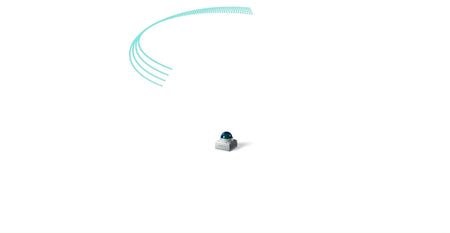

360° Surround View with Extended Field of View

The Mid-360 is the first LiDAR sensor using hybrid solid-state technology to offer a full 360° horizontal field of view along with a 59° vertical field of view. This expanded sensing range enables mobile robots to capture even more complex 3D environments accurately and efficiently.

Specifications

  • Field of view: 360° × 59°

  • Minimum detection range: 0.1 m

  • @10% reflectivity: 40 m

  • Point cloud density: 40-line

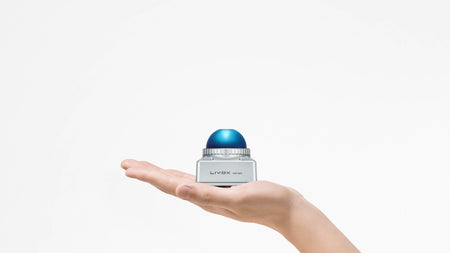

  • Dimensions (L × W × H): 65 × 65 × 60 mm

  • Weight: 265 g

Currently not available for delivery
